Using a Virtual Environment with JupyterLab¶
The VACC Open OnDemand instance offers several choices of Python to choose from. The Anaconda distribution(s) with over 250 installed packages will cover most common scenarios except some specialized packages, e.g., Torch, TensorFlow.
This page gives a step-by-step guide to installing a particular set of
Python packages in a Conda virtual environment and then setting that
virtual environment up so it can be used with the JupyterLab
application. Similarly, a virtual Python environment that was created
with either virtualenv
or venv
can be accessed in JupyterLab via a
kernel.
Create a Conda virtual environment and install the kernel¶
These instructions assume that you are starting with a 'clean slate',
by which we mean there are no active Conda environments. This also
assumes that you want to create the virtual environment in the
standard path ~/.conda/envs
. If you want to save it elsewhere, see
the official
documentation for details on setting a --prefix
. All of the
commands that follow are preceded by a $
prompt. If you copy and
paste, do not copy the prompt. Lines that start with a #
are
comments that simply provide information. To be extra safe, we
deactivate any Conda environments. If you don't have an active Conda
environment, running the deactivate
command is harmless and will
simply tell you that The command: conda could not be found
. This is
a safety measure for those for whom it is found.
$ conda deactivate
The first thing we want to do is insure that we have only the module(s) needed for our project, which is biology for this example. To do that we first remove all loaded modules, then load the one(s) we need.
# Clear modules
$ module purge
# Load the needed modules
$ module load python3.12-anaconda/2024.06-1
The next step is to source the conda.sh
file. This will avoid having
to run conda init
which would "permanently" add the Conda setup
commands to your ~/.bashrc
file.
$ source ${ANACONDA_ROOT}/etc/profile.d/conda.sh
Next, we create the environment, making sure to specify the Python
version explicitly so that it matches one of the available options in
Open OnDemand. In this example, we name our environment
my_bio_env
. You can substitute any name that is appropriate for your
environment. Additionally, note that the name given to the kernel does
not have to match the name of the conda environment. We use the same
name in our example below for simplicity.
$ conda create --name my_bio_env python=3.12
# Enter 'y' when asked: Proceed ([y]/n)?
$ conda activate my_bio_env
# Use the '-c' option to specify a channel if any of your
# packages need to be downloaded from a particular site
$ conda install -c conda-forge pandas numpy pySlim scikit-allel msprime
# Enter 'y' again, when asked to proceed
# Install ipykernel so that you can access your environment from
# the JupyterLab Launcher menu (use -y to answer yes automatically)
$ conda install -y ipykernel
# Installing the kernel
$ python -m ipykernel install --user --name=my_bio_env
# Deactivate when finished
$ conda deactivate
Using the new kernel with JupyterLab¶
Go to VACC Open OnDemand, bring up
the JupyterLab / Jupyter Notebook form and select JupyterLab
mode. Under the Python Version field, be sure to select a version that
matches the Python version used when you created your environment. In
this case, python3.12-anaconda/2024.06-1
would be the appropriate
version to choose.
Once your JupyteLab session has started, the interface you see will depend upon how you ended your previous session. If you left a notebook open, it will likely be open at the start of your new session, as below. In that case, you can either close the open file via the File menu or via the X on the tab and you will be left with an open Launcher tab. Or you can simply click the + symbol (indicated by the red arrow in the screenshot below) next to the open file tab and a new tab with the Launcher will open.
Screenshot of JupyterLab interface indicating the plus symbol for opening a launcher tab.

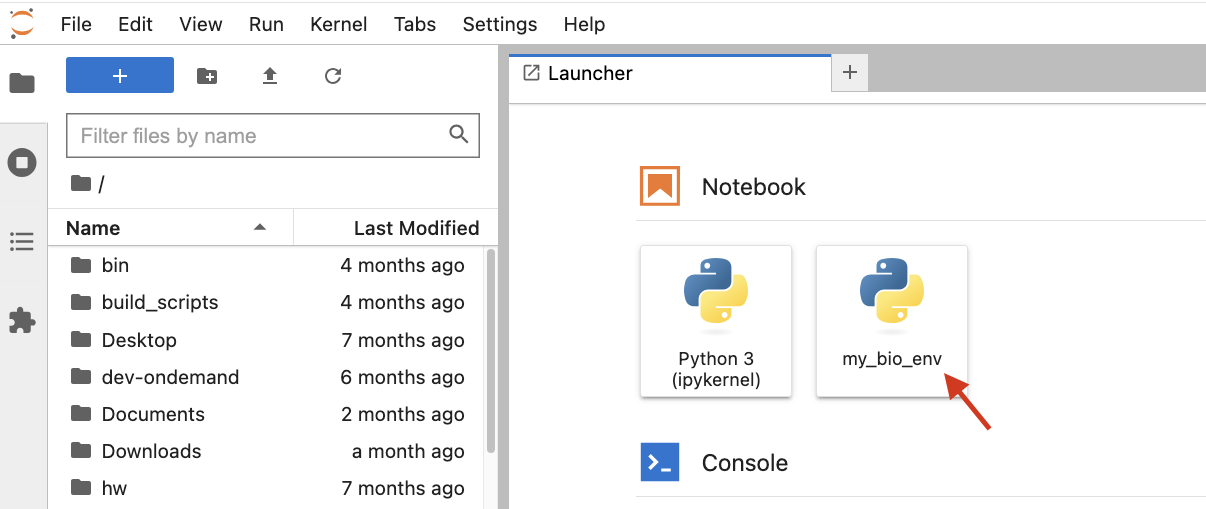

In the Notebook section of the Launcher tab, you should see
my_bio_env
(or the name given when you created the kernel) listed as
an available kernel (see screenshot below). Clicking the icon with the
kernel name will open a new notebook with the previously created
environment loaded as the kernel.
Screenshot of JupyterLab interface indicating the kernel icon in the Notebook section of JupyterLab's Launcher tab.
Using the new Conda environment from a terminal or in a SLURM batch job¶
To use the new Conda virtual environment, in this case named
my_bio_env
, from within a terminal, enter the following commands:
$ module load python3.12-anaconda/2024.06-1
$ source ${ANACONDA_ROOT}/etc/profile.d/conda.sh
$ conda activate my_bio_env
If you want to run a batch job that uses the Conda environment, copy
the above commands into your batch script. Do not include the $
at
the beginning of each command.
