Tag Archives: security

Remote Desktop Gateway

In order to connect to the Remote Desktop service on centrally managed servers from off campus, as well as some more sensitive servers from on campus, you need to use the Remote Desktop Gateway feature.

For the current Remote Desktop Client on Windows, you can configure this option by going to the Advanced Options tab, and then click the Settings button.

Remote Desktop Gateway settings

On the RD Gateway Server Settings window that open, select the second option, Use these RD Gateway server settings. The server name is rdgateway.uvm.edu, and chose the Ask for password option.

Click OK, and you should be able to connect using the RD Gateway service. For more information about RD Gateway, see What is a Remote Desktop Gateway server?





Renewing Tomcat SSL certificates

Following Greg’s advice, as well as the Tomcat docs here are the steps I’ve performed to update the SSL certificates used by two Tomcat instances:

  1. Backup the existing keystore file, just in case..
  2. Generate a new certificate, with new alias
    E:\Tomcat\conf> %java_home%\bin\keytool -genkey -keystore mytomcatserver.keystore -storepass ############ -alias tomcat2013 -keyalg RSA -keysize 2048  -dname "CN=mytomcatserver.uvm.edu, OU=Enterprise Technology Services, O=University of Vermont, L=Burlington, ST=VT, C=US" -validity 730
  3. Create a certificate signing request for that cert
    E:\Tomcat\conf> %java_home%\bin\keytool -certreq -keystore mytomcatserver.keystore -storepass ############ -keyalg RSA -alias tomcat2013 -file mytomcatserver.csr
  4. process the CSR with our CA

Now, there are two options for importing the certificate, and I’m not sure if there are implications for the difference:

  1. Import the rootCA cert first, then the intermediate CA, then the actual server
  2. Import the three certificates together as a chained cert. The order of the certificates in the certificate file appears significant; our signing authority provides the chained cert with the RootCA first, which hides the other certs from the Windows cert viewer, among other things.

To import the chained cert (ordered with the host cert, interm. cert, then rootCA cert):

E:\Tomcat\conf> %java_home%\bin\keytool -import -keystore mytomcatserver.keystore -storepass ############ -alias tomcat2013 -file mytomcatserver_uvm_edu.cer -trustcacerts

Now, we need to update the tomcat server.xml so that the keyalias attribute references our new certificate’s alias. Then, when the tomcat process is cycled, it should use the new cert.

Scripting printer permissions

I will probably need to refer to this myself, but maybe someone else will find this useful.

Still working through some print queue management tasks, I needed to change permissions on a collection of printers. Yesterday, I broke down and did a bunch of repetitive work in the GUI, and noticed there were some inconsistencies in the permissions applied to a clients print queues. Today, I decided that I would fix them, but I didn’t want to use the GUI.

Although the Server 2012 Printer Management Set-Printer cmdlet can change the permissions through its -PermissionSDDL parameter, I haven’t found a workable (even if you call SDDL workable) way to do so on a Server 2008 system.

So I fell back to using PowerShell with Helge Klein’s SetACL command-line tool. I could also have used his COM version if I wanted to be really efficient. I use an array of arguments to the external command. See this Scripting Guy post for more info on calling external commands.

Here’s what I did:

# Retrieve a list of target printers
PS C:> $rlprinters = gwmi Win32_Printer -filter "Name like 'RL -%' OR Name like 'RL-%' "

# Construct a list of printer names in \\[hostname]\[sharename] format
PS C:> $printers = $rlprinters | % { '\\' + $_.SystemName + '\' + $_.ShareName }

# Create some variables to make the command construction simpler
PS C:> $setacl = 'C:\local\bin\SetACL.exe'
PS C:> $group = 'DOMAIN\RL-PrinterGroup'

# Iterate through the list of printers, calling SetACL for each
PS C:> foreach ( $p in $printers ) {
>> & $setacl '-on', $p , '-ot', 'prn', '-actn', 'ace','-ace',"n:$group;p:full"
}

It worked like a champ.

Note that I needed to run an elevated PowerShell session (run as Administrator) to be able to make the changes. Also, I tested this on a single printer before attempting to make bulk changes. I also have a nightly dump of my printer configuration. You get the idea.

You can include multiple actions for each invocation of SetACL, and there are a number of ways to collect output in case you need to follow-up on problems when applying changes to large collections of printers. Hopefully, this is enough to get you started,

HoW PGP Whole Disk Encryption Works

In my discussion and demo at the IT-Discuss Live – Security event in May, I used a short slide deck to describe—in broad terms—how PGP Whole Disk Encryption works. This laid the foundation for working through some common-ish support scenarios.

ITDL-PGPWDE-How_it_works

Having received several requests for a copy of the slides, here they are, in both PowerPoint (.pptx) and PDF formats.

How to catch a phish

I’ve received several phishing attempts, recently, this time masquerading as mail from Twitter. I thought I’d share how I recognized this as an attack. Many list members already know this stuff, but I thought I’d share since we still see folks responding to these kinds of attacks.

1. Unexpected

Before I even looked at the content of the message, I was suspicious because I don’t have any twitter stuff associated with my UVM email. I could have deleted the message then and, if I was using twitter, logged into my twitter account directly to see if something was going on.

But I wondered how the message was crafted, so I opened it with awareness.

2. False link

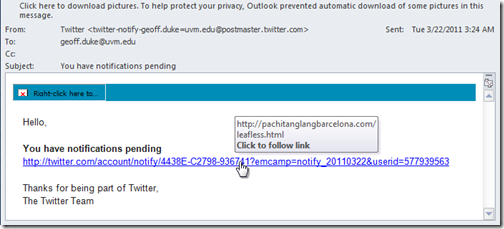

A false link is shows a web address in the message, but the link that is attached to it is different. Below, my mail program shows that the link will actually send me to pachitanglangbarcelona.com.

twitter-scam-ol

Continue reading

NetApp and Microsoft Security Updates

When the recent SMB 2.0 vulnerability was announced, there was some discussion on the Toasters mailing list about whether Data ONTAP was affected. Val Bercovici from NetApp responded that Data ONTAP was not affected by this issue.

Today, I discovered that to enable the filer snapshots to be visible within the Previous Versions facility within Windows 7 (or Server 2008 R2), I needed to enable SMB 2.0. I spent some time search on NetApp’s support site for some assurance that the SMB issue didn’t affect ONTAP, but didn’t find anything.

So I sent Mr. Bercovici an email asking if there was a more official statement about ONTAP and SMB 2.0, and he very kindly looked sent me a link to the Windows File Services (CIFS) Compatibility Matrix – Microsoft Security Update Test Report. [requires NOW account]

This document rocks. It lists the Microsoft Security updates, by month, and the result of NetApp’s testing. Exactly what I was looking for. Thanks, Val.

Is that program running as administrator?

Using Process Explorer to view process integrity levels

A friend asked me how to open a Control Panel applet As Administrator. In Windows Vista, when you see a little shield icon as part of a button or shortcut, that would indicate that you would get prompted by the User Account Control (UAC) facility to elevate the process Integrity Level, that is, to run it as an administrator with full rights to muck with the system.

In Windows 7, the frequency of UAC prompts has been reduced. You will still see the shield icon, but sometimes there’s no UAC prompt.

You can use Microsoft SysInternals Process Explorer tool to view the integrity levels of running processes. On campus, you can run the tool from \\files\software\utilities\sysinternals\procexp.exe. Once you’ve started Process Explorer, there are two things you’ll want to do:

  1. From the File menu, select the Show Details for All Processes option (you noted the shield icon, yes?).
  2. From the View menu, choose Select Columns… and check Integrity Level item (on the Process Image tab; see below)

procexp-show-integrity

  Continue reading

Wednesday – March 25

Fixed permissions early (6 am) successfully with NetApp fsecurity command. That and the secedit tool made it quick work.

Did a little Russinovich-guided analysis of a minidump file created by EMC Networker.

Did some more work on UVM::AD module.

A number of other accumulated general administration tasks.

Wrote this perl one-liner to find the volume that contains a user’s homedir:

Z:\>perl -e"foreach (1..5) { $dir=qq{uvol_t1_$_\$}; print $dir, qq{\n} if ( -d '\\\\files\\' . $dir . '\\q-home\\g\\gduke'); }

might be worth turning that into a more robust command and turning it into an exe.

Horror! It appears that I forgot my laptop’s power supply at work. A wrinkle in the work-from-home-during-teacher-conference-early-release-days plan. [/sigh]

Tuesday – March 24

Home directory permissions issues.

Found: How to display the security permissions of a file from the filer which mentions the fsecurity command. Also found the white paper Bulk Security Quick Start Guide. Information about the Security Descriptor Definition Language SDDL at MSDN. From a comment on that page, I found Mark Minasi’s newsletter describing the SDDL syntax.

After poking at a few things with SubInACL.exe, I used the secedit utility from NetApp to create a security job file.

I created a new file, added a location”/vol/testvol”, then added the BUILTIN\Administrator user with Full Control. This generated a file containing the following:

cb56f6f4
1,0,"/vol/testvol",0,"D:(A;CIOI;0x1200a9;;;Everyone)(A;CIOI;0x1f01ff;;;builtin\administrators)"

The instruction are specific that you can’t remove the “Everyone” ACE, which is exactly what I wanted to do. So I edited the generated text file to remove that ACE, resulting in the following:

cb56f6f4
1,0,"/vol/testvol",0,"D:(A;CIOI;0x1f01ff;;;BUILTIN\Administrators)"

The command fsecurity apply /vol/path/to/file appears to have corrected the permissions just fine. I edited the file’s location to another affect volume and that worked as well.
